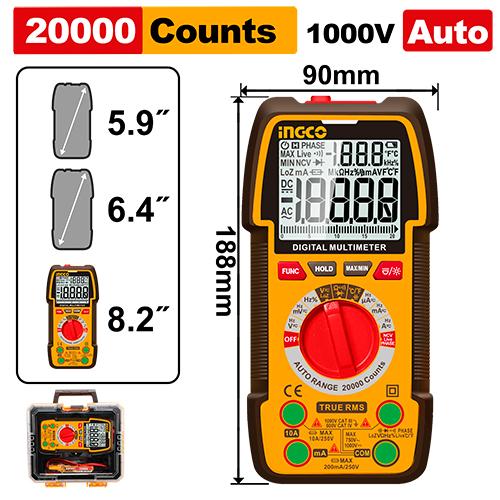

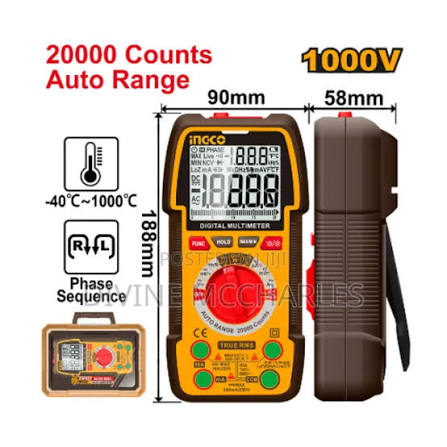

INGCO DM410003 – 1000V True RMS Digital Multimeter

- Key Features
- 20,000-count True RMS display
- Auto Range function
INGCO DM410003 1000V True RMS Digital Multimeter – 20000 Counts, Auto Range
The INGCO DM410003 Digital Multimeter is a versatile True RMS measuring instrument designed for electrical testing, troubleshooting, maintenance and general electronic applications. It features a 20,000-count digital display and Auto Range function for convenient measurement across a wide range of electrical parameters.
It can measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle and temperature. The multimeter also includes useful functions such as Non-Contact Voltage Detection (NCV), live/neutral line identification, data hold, Low-Z measurement, phase function, diode test and continuity test.
The unit comes with backlight, flashlight, low-battery indication and input LED indication, making it practical for electrical maintenance and testing work. It is supplied with 3 × AAA batteries and packed in a protective plastic box.
Measurement Ranges
DC Voltage
200.00mV
2.0000V
20.000V
200.00V
1000.0V
AC Voltage
200.00mV
2.0000V
20.000V
200.00V
750.0V
DC / AC Current
200.00µA
2000.0µA
20.000mA
200.00mA
10.000A
Resistance
200.00Ω
2.0000kΩ
20.000kΩ
200.00kΩ
2.0000MΩ
20.000MΩ
100.00MΩ
Capacitance
20.00nF
200.0nF
2.000µF
20.00µF
200.0µF
2.000mF
20.00mF
Frequency
200.00Hz
2.0000kHz
20.000kHz
200.00kHz
2.0000MHz
10.000MHz

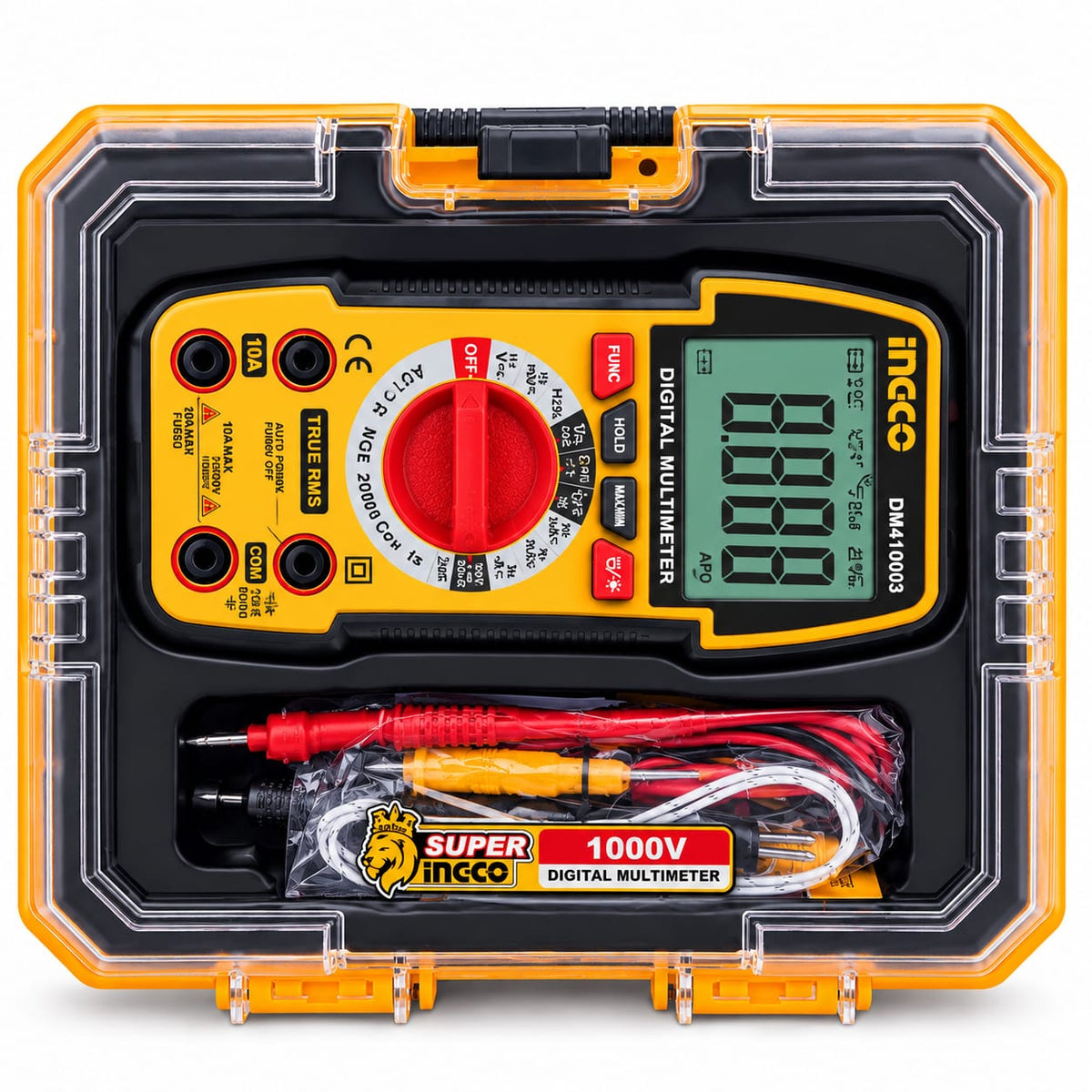

What's Inside the Box?
1 × INGCO DM410003 Digital Multimeter
1 × Test Lead Set
1 × K-Type Temperature Probe / Sensor *
3 × LR03 AAA Batteries
1 × Protective Plastic Storage Box
